Integrate ArgoCD Notifications with Slack

In this article we are going to cover Create App in Slack, create channel in slack and How to Integrate ArgoCD Notifications with Slack for Real time notifications.

Integrating ArgoCD with Slack allows you to receive real-time notifications about deployments and application health directly in your Slack channels

Prerequisites:

• Minikube Installed
• An ArgoCD cluster
• A Slack workspace

Step #1:Create a Slack App

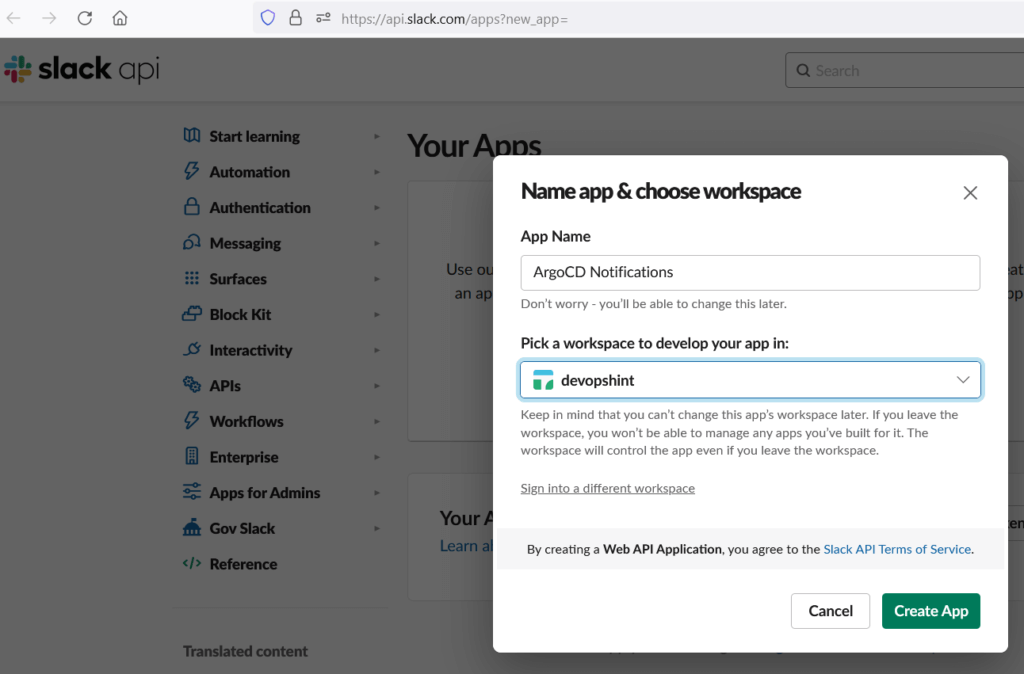

Go to the Slack API page and create a new app.

Choose a name for your app (e.g., “ArgoCD Notifications“) and select your Slack workspace.

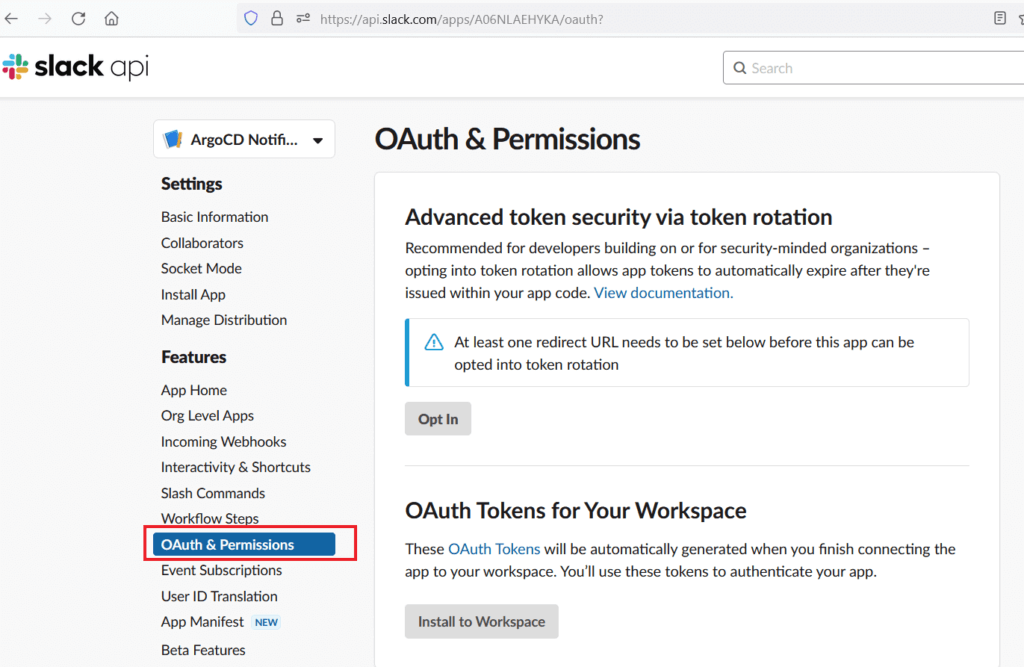

Under OAuth & Permissions

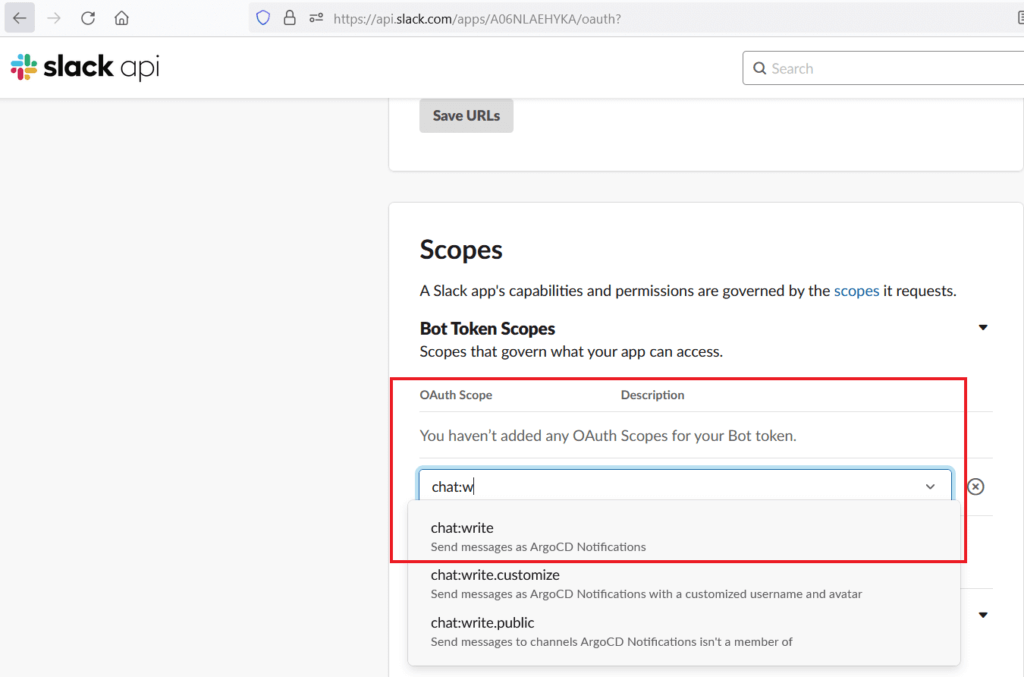

add the following scopes:

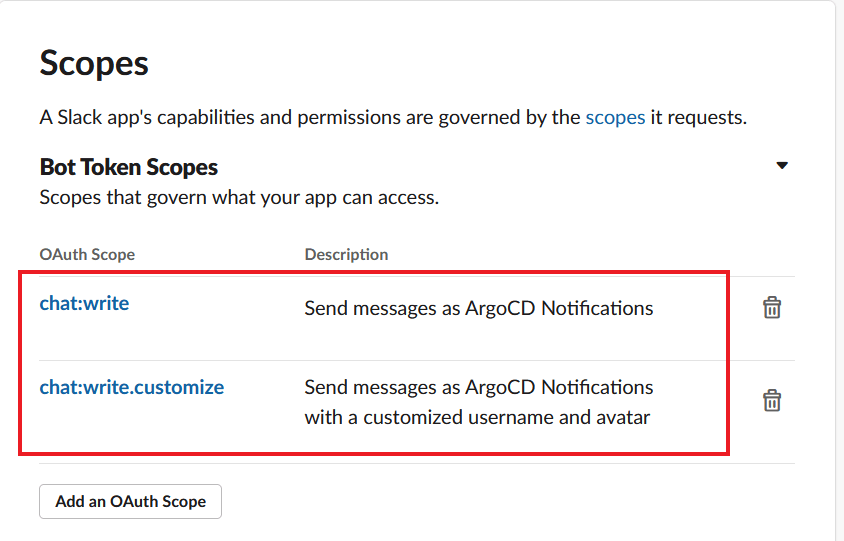

chat:write

chat:write.customize

Install the app to your workspace

Click on “Allow“.

copy the generated Bot User OAuth Token.

Step #2:Create New Slack Channel

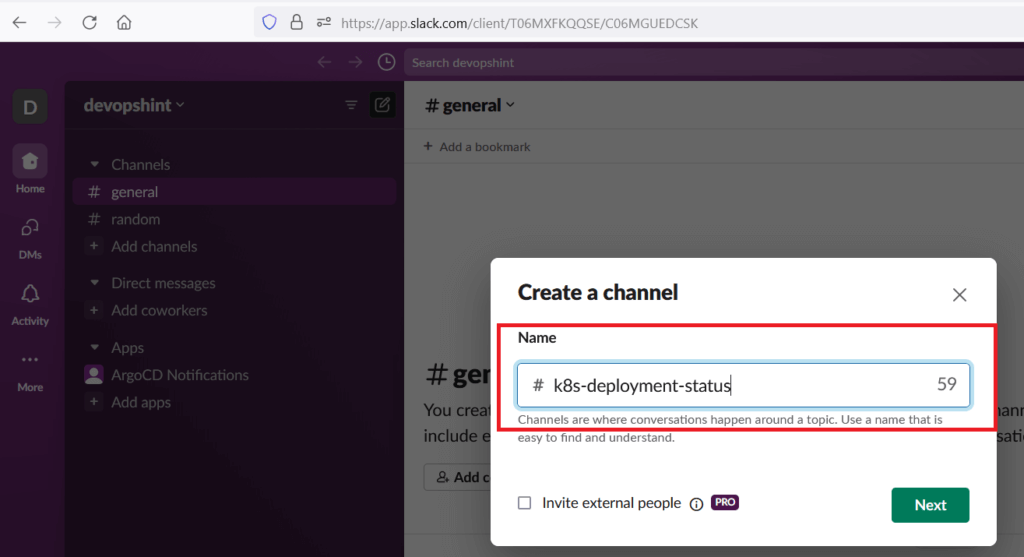

Create a New slack Channel For Ex. “k8s-deployment-status“

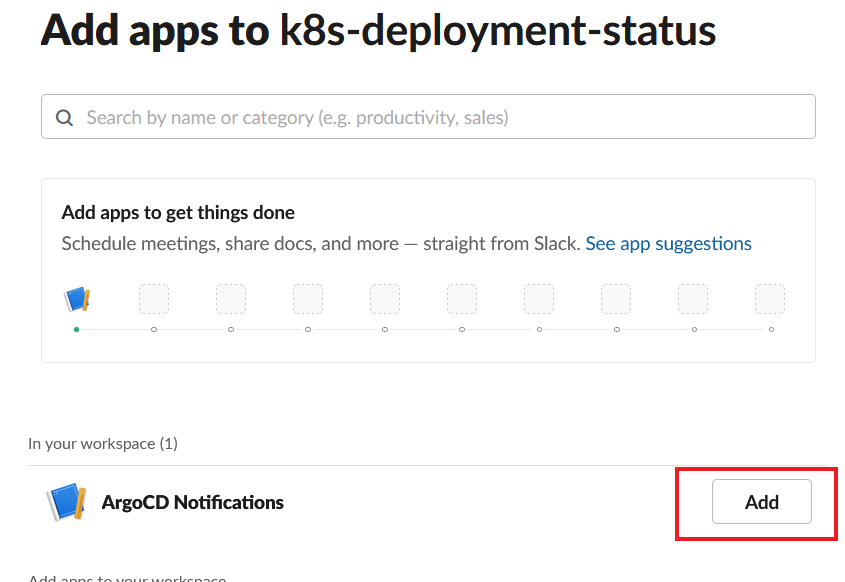

Click on Add an App to add above “ArgoCD Notifications” app into slack channel

Select the App and Click on “Add“.

Step #3:Install ArgoCD Notifications (if not already installed):

You can install ArgoCD Notifications using the provided installation method based on your deployment (manifest, operator, or Helm) from ArgoCD Notifications official page.

Step #4:Configure ArgoCD Notifications with Slack

Edit the argocd-notifications service manifest and provide the following details or you can create new secret as shown below

Slack token: The Bot User OAuth Token from step 1.

Slack channel: The name of the channel where you want to receive notifications (e.g., “#k8s-deployment-status“).

sudo nano argocd-notifications-secret.yaml

paste the below code, add slack tocken from step 1

apiVersion: v1
kind: Secret
metadata:
  name: argocd-notifications-secret
  namespace: argocd
stringData:
  slack-token: "xoxb-"

Apply the above secret yaml

kubectl apply -f argocd-notifications-secret.yaml

use the OAuth token to configure the Slack integration in the argocd-notifications-secret secret in configmap

sudo nano argocd-notifications-cm.yaml

Paste the below code.

apiVersion: v1
kind: ConfigMap
metadata:
  name: argocd-notifications-cm
data:
  service.slack: |
    token: $slack-token  # use as it is
  defaultTriggers: |
    - on-deployed
  trigger.on-deployed: |
    - description: Application is synced and healthy. Triggered once per commit.
      oncePer: app.status.operationState.syncResult.revision
      send:
      - app-deployed
      when: app.status.operationState.phase in ['Succeeded'] and app.status.health.status == 'Healthy' and app.status.sync.status == 'Synced'
  template.app-deployed: |
    message: |
      {{if eq .serviceType "slack"}}:white_check_mark:{{end}} Application {{.app.metadata.name}} is now running new version of deployments manifests.
    slack:
      attachments: |
        [{
          "title": "{{ .app.metadata.name}}",
          "title_link":"{{.context.argocdUrl}}/applications/{{.app.metadata.name}}",
          "color": "#18be52",
          "fields": [
          {
            "title": "Sync Status",
            "value": "{{.app.status.sync.status}}",
            "short": true
          },
          {
            "title": "Repository",
            "value": "{{.app.spec.source.repoURL}}",
            "short": true
          },
          {
            "title": "Revision",
            "value": "{{.app.status.sync.revision}}",
            "short": true
          }
          {{range $index, $c := .app.status.conditions}}
          {{if not $index}},{{end}}
          {{if $index}},{{end}}
          {
            "title": "{{$c.type}}",
            "value": "{{$c.message}}",
            "short": true
          }
          {{end}}
          ]
        }]

apply the above yaml

kubectl apply -f argocd-notifications-cm.yaml

Step #4:Configure Application Notifications (optional):

Annotations can be added to individual applications within ArgoCD to specify notification preferences:

argocd-notifications.argoproj.io/channels: Comma-separated list of Slack channels to notify.

Other annotations like argocd-notifications.argoproj.io/kinds and argocd-notifications.argoproj.io/resources can be used to filter notifications based on resource types and kinds.

Create Application in ArgoCD and add slack channel to test argocd notifications with slack channel

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: go-app
  namespace: argocd
  annotations:
    notifications.argoproj.io/subscribe.on-deployed.slack: k8s-deployment-status
    notifications.argoproj.io/subscribe.on-sync-failed.slack: k8s-deployment-status
    notifications.argoproj.io/subscribe.on-sync-succeeded.slack: k8s-deployment-status
  finalizers:
    - resources-finalizer.argocd.argoproj.io
spec:
  destination:
    name: 'in-cluster'
    namespace: 'default'
  source:
    path: 'chart'
    repoURL: 'https://github.com/devopshint/gitops-workflow-deploy-goapp-minikube-using-argocd'
    targetRevision: HEAD
    helm:
      valueFiles:
      - values.yaml
  project: 'default'
  syncPolicy:
    syncOptions:
      - CreateNamespace=false

Apply the above Application in ArgoCD, once application is deployed, you will receive deployment status in slack channel

Conclusion:

In this article we have covered Create App in Slack, Create Channel in Slack, integrate ArgoCD Notifications with slack.
